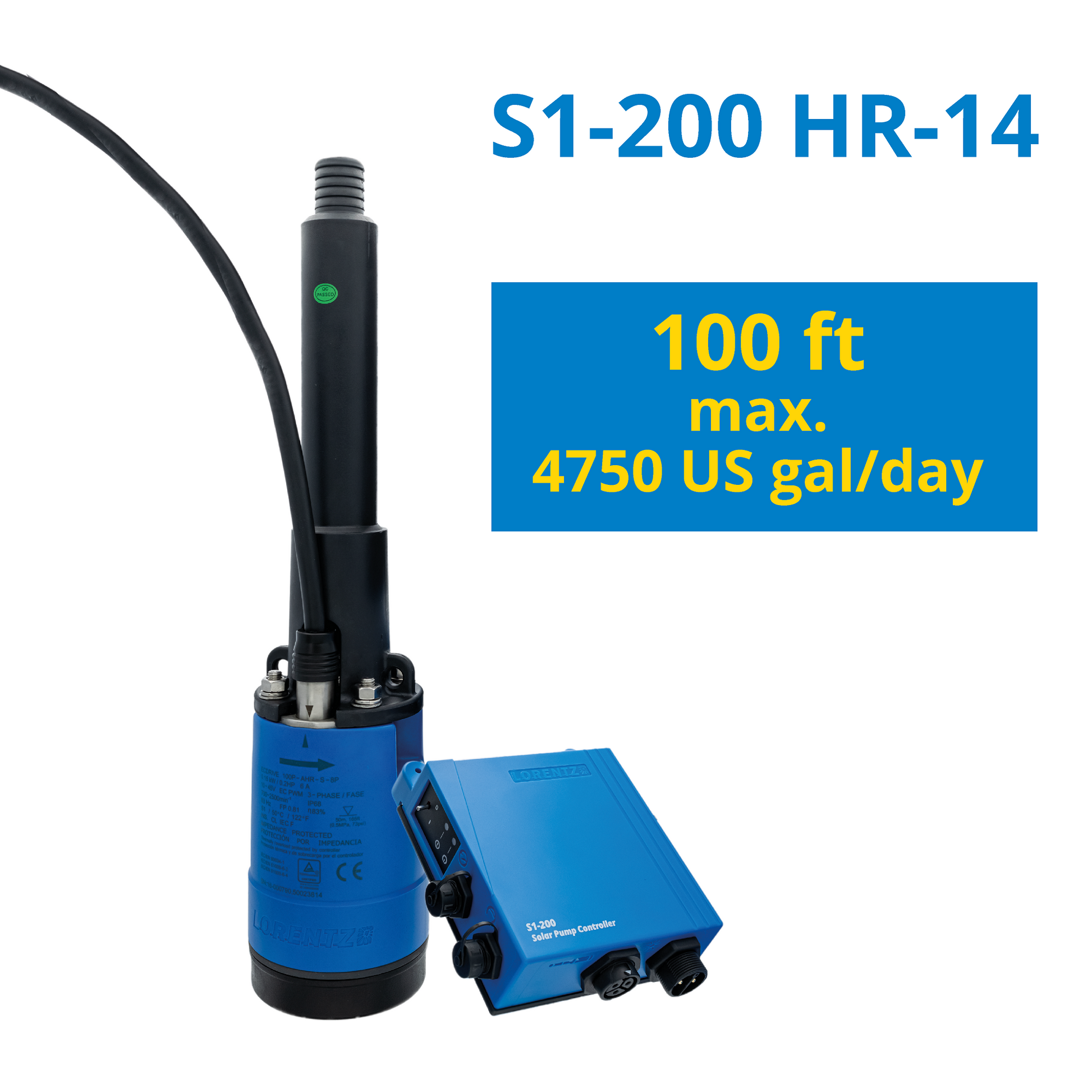

Solar Pump System S1-200 HR-14 // max. flow 4,750 USG/day, max. head 100 ft
Solar Pump System S1-200 HR-14 // max. flow 4,750 USG/day, max. head 100 ft
Couldn't load pickup availability
Features
- High-efficiency pumping system powered by solar energy.
- Submersible helical rotor pump with high-efficiency brushless DC motor
- Motor cable with plug included (50 ft length)

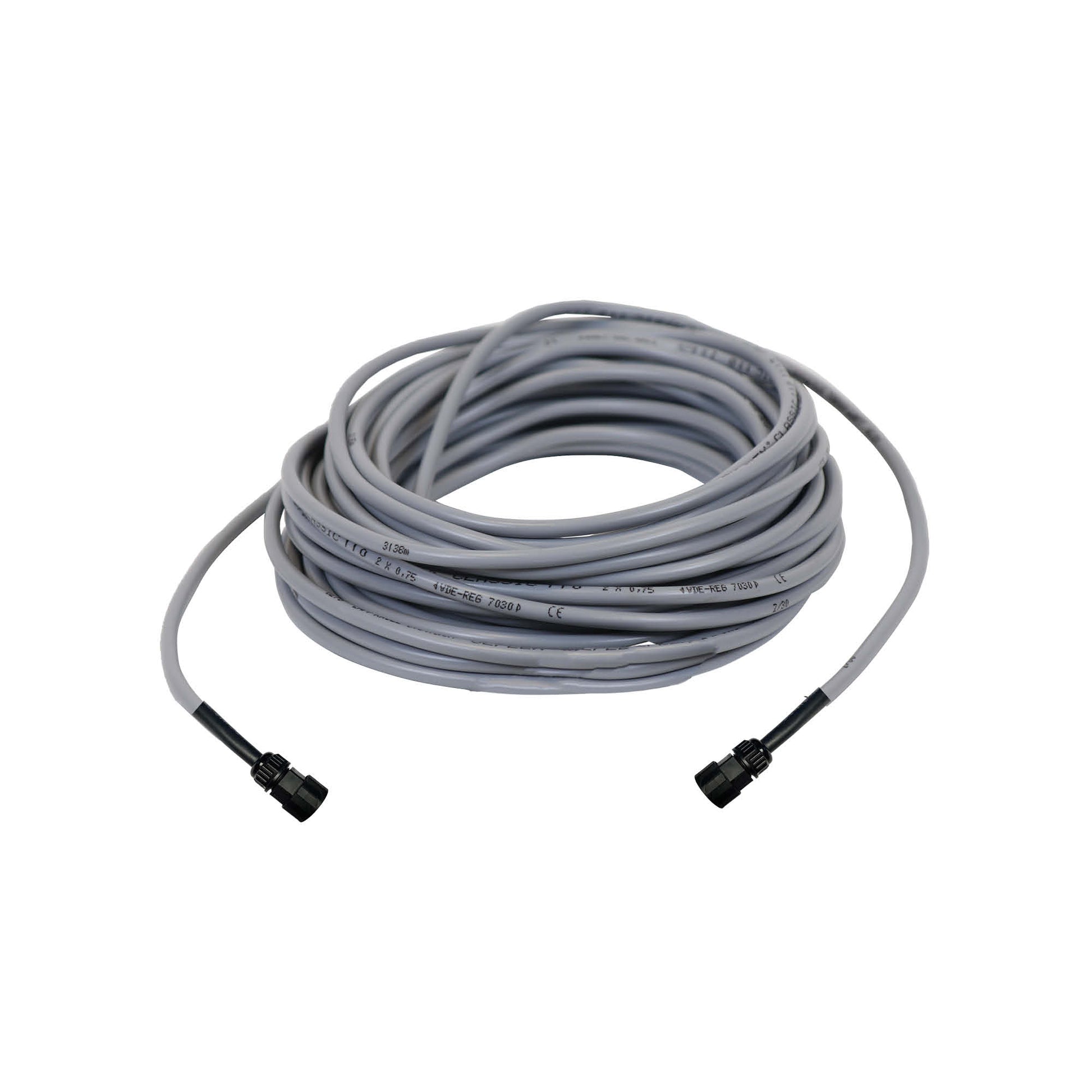

- Control inputs for dry-run protection sensors and full-tank switch to automate the system
- Controller with Bluetooth® connection for local setup and control
- Easy-to-use S-Connect app for speed control, timers, and troubleshooting
- Protected against reverse polarity, overload, and overheating
- Integrated MPPT (Maximum Power Point Tracking)
- Plug connections for easy and fast self-installation
- Replaceable cables for extended lifespan
- Includes an MC4 adapter cable for solar power input
- Includes a clamp to secure a 1-inch hose to the pump outlet
- The motor and pump are made with high-quality materials for increased durability and reliability
You can download the brochure, user manual, technical data sheets for the pumping equipment, and accessories at the following link:
S1-200 Pumping System Documentation
You can also download the technical data sheet for the PV modules at the following link:
Technical Data Sheet: 200 Wp fixed PV module kit
Content
At PUMP WITH SOLAR, we offer the following kits. Choose the one that best fits your needs:

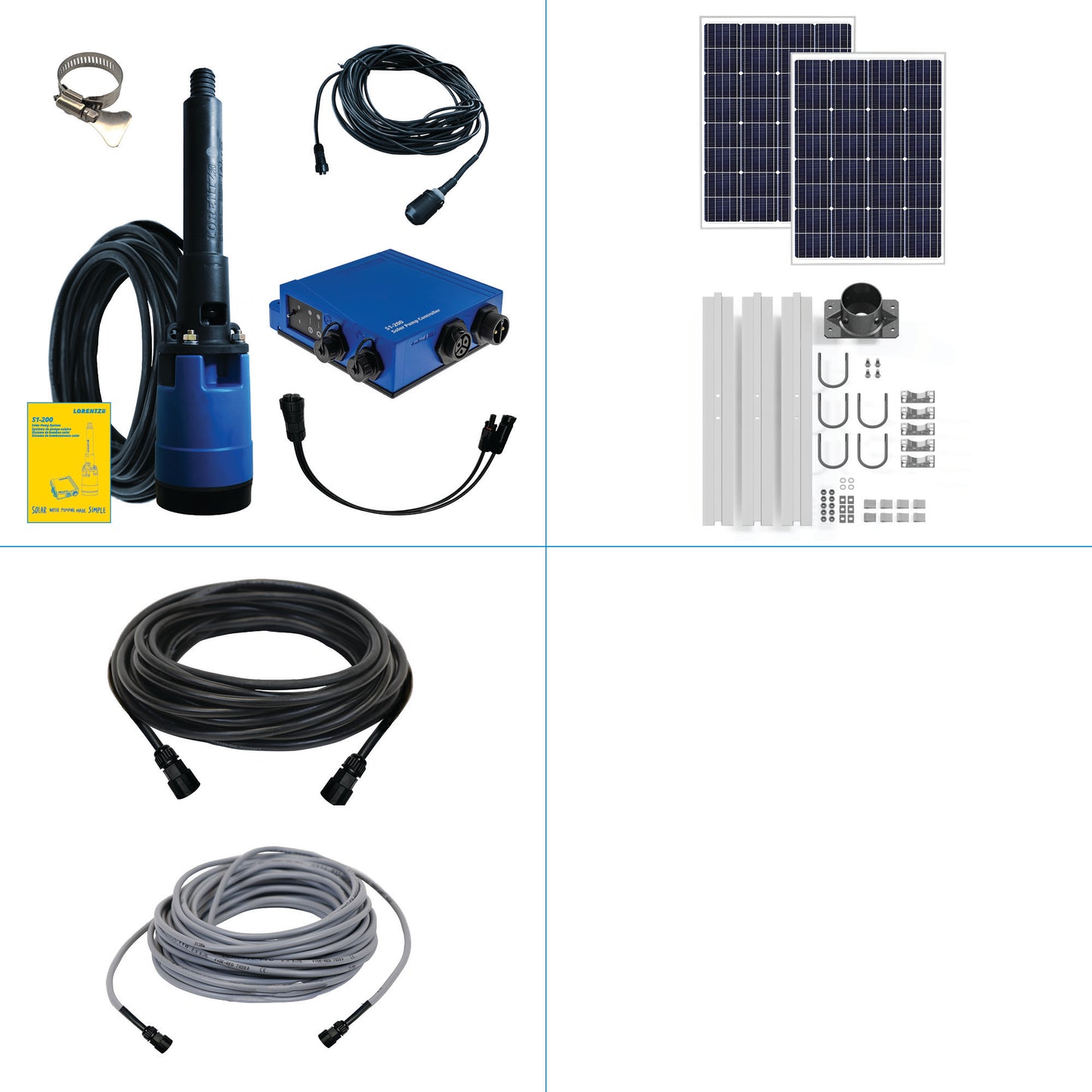

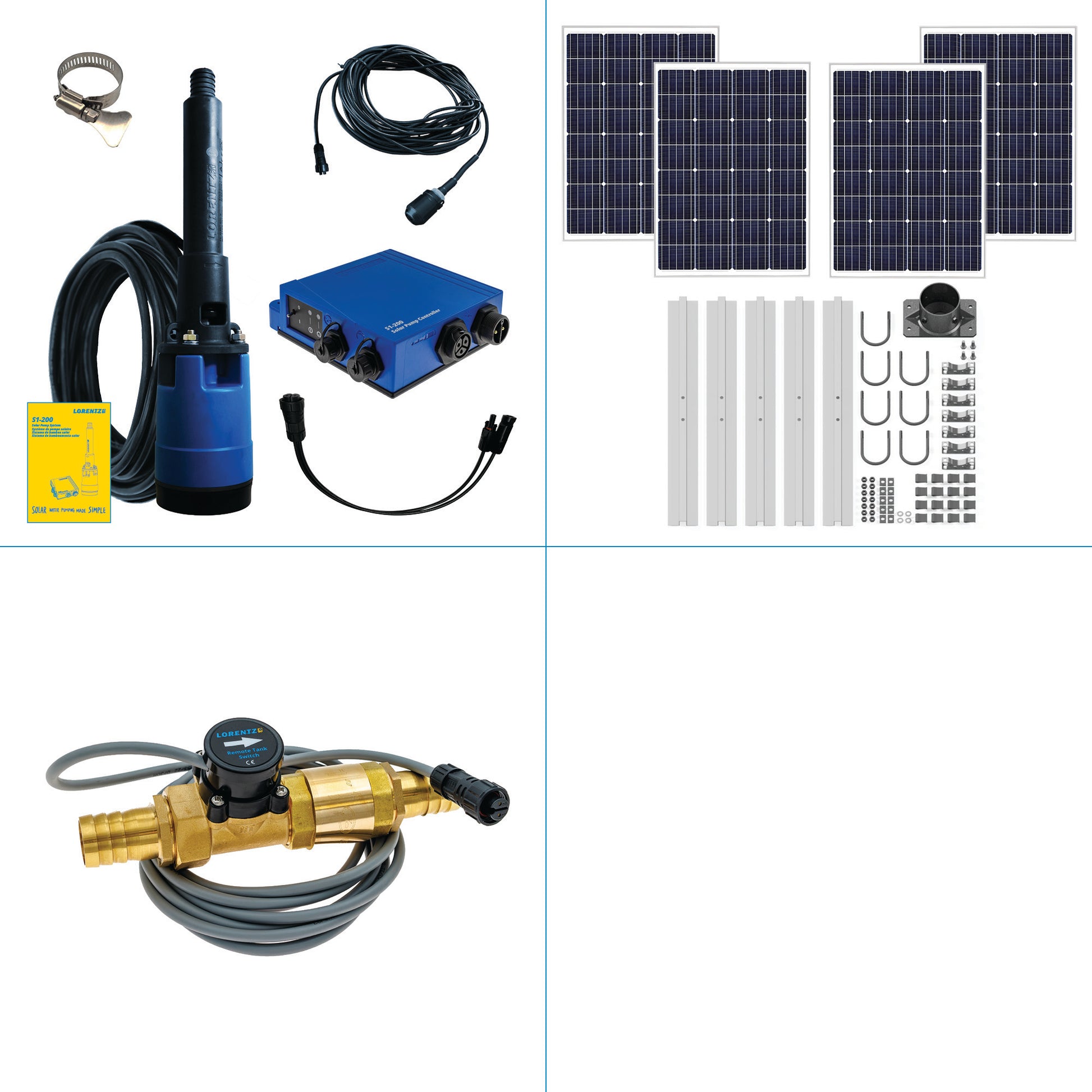

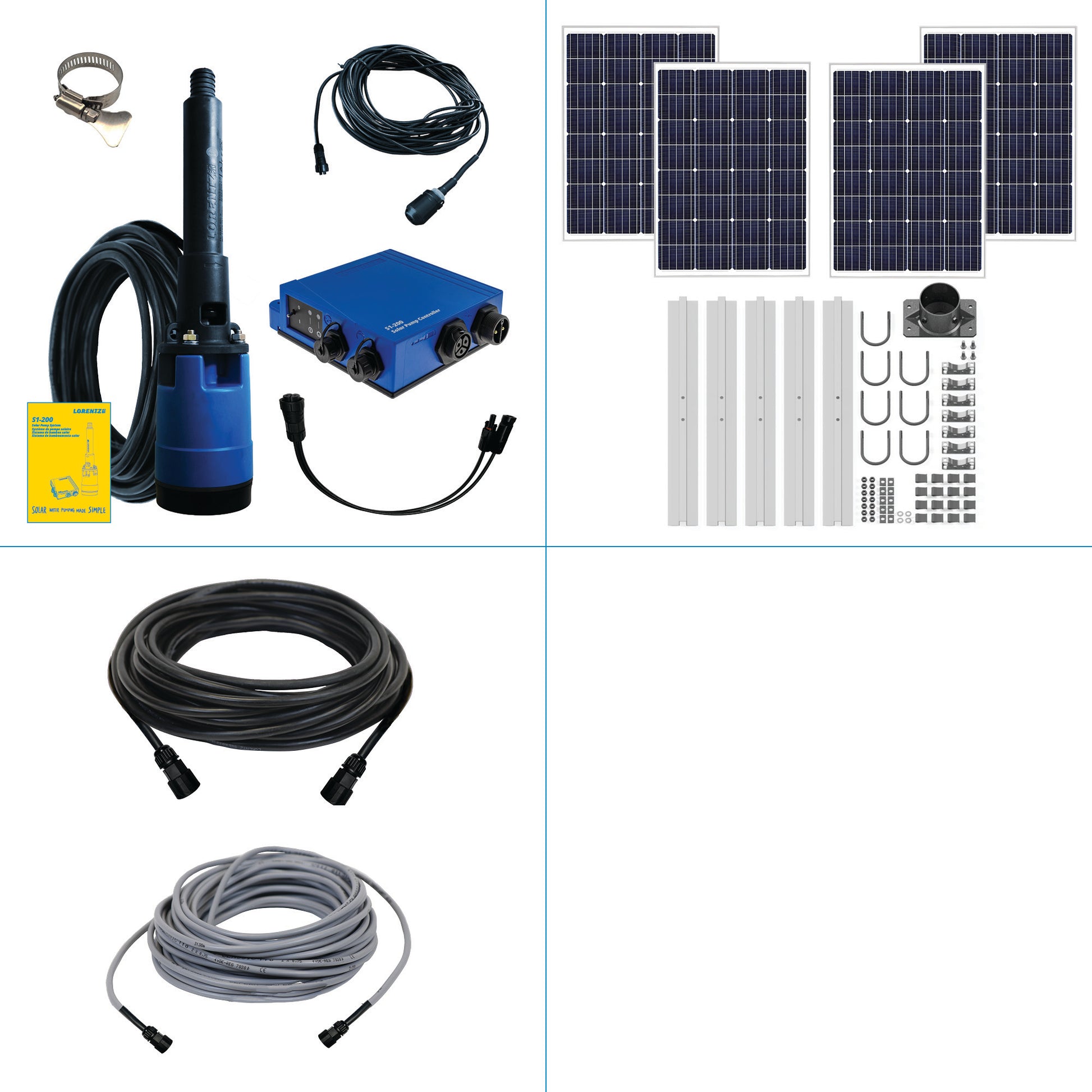

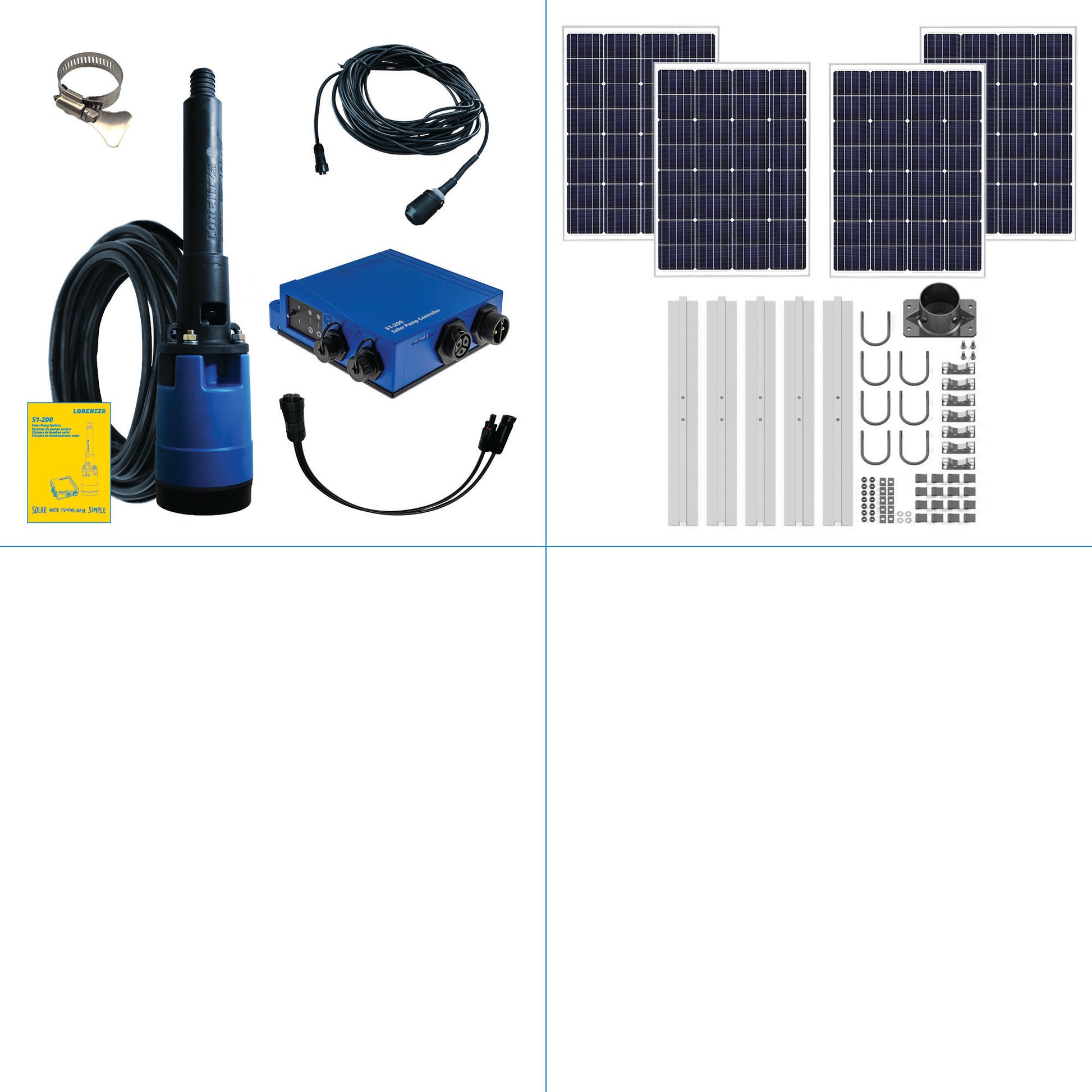

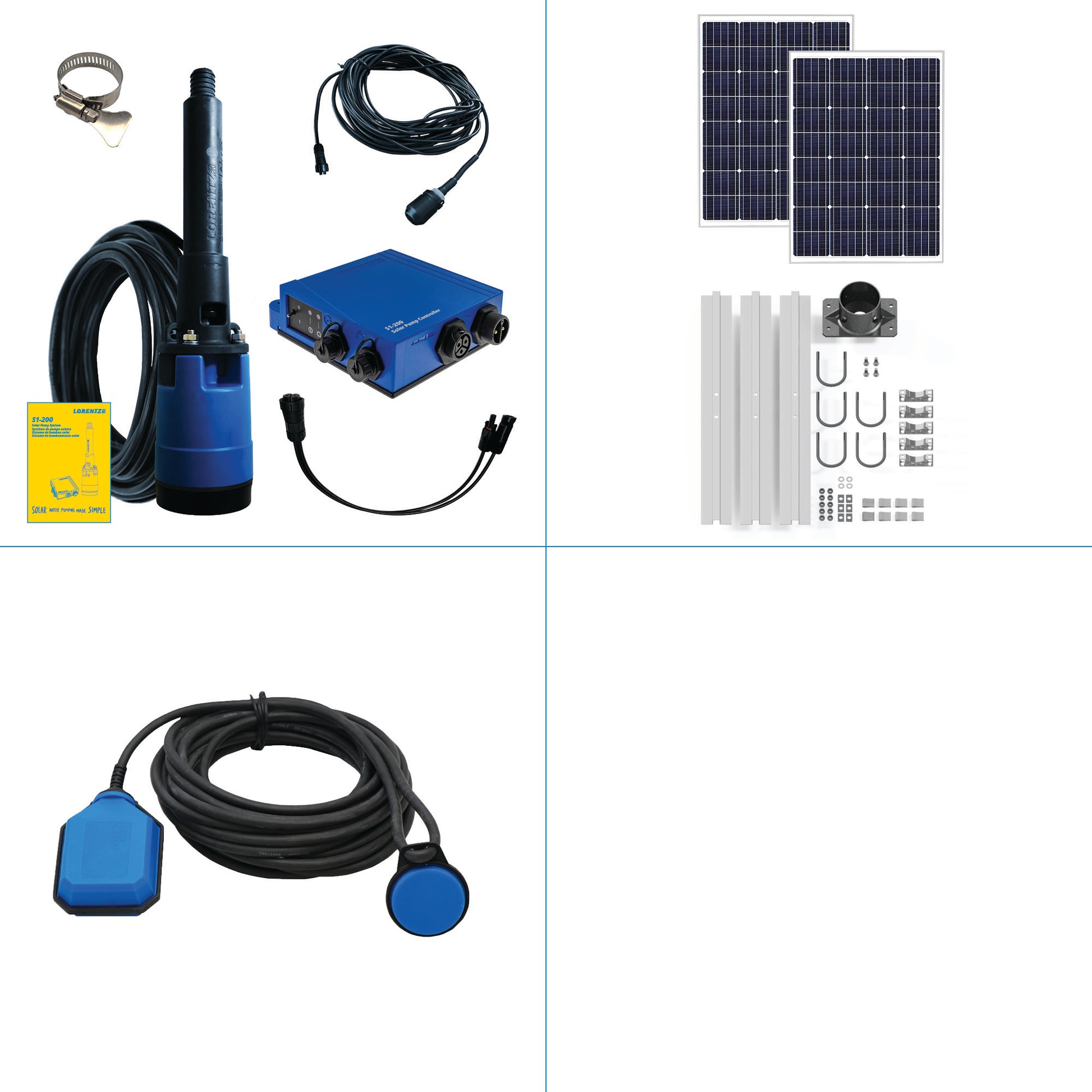

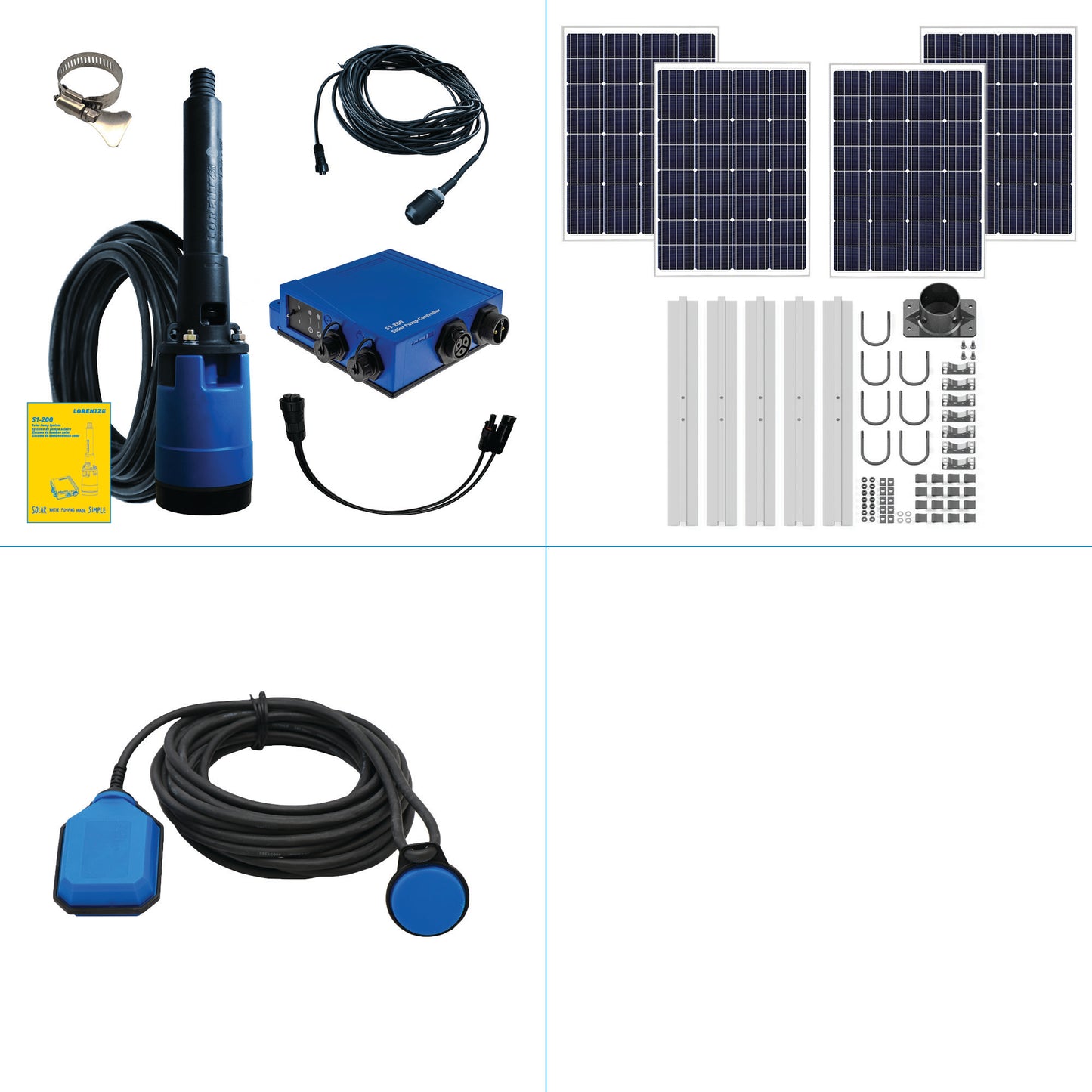

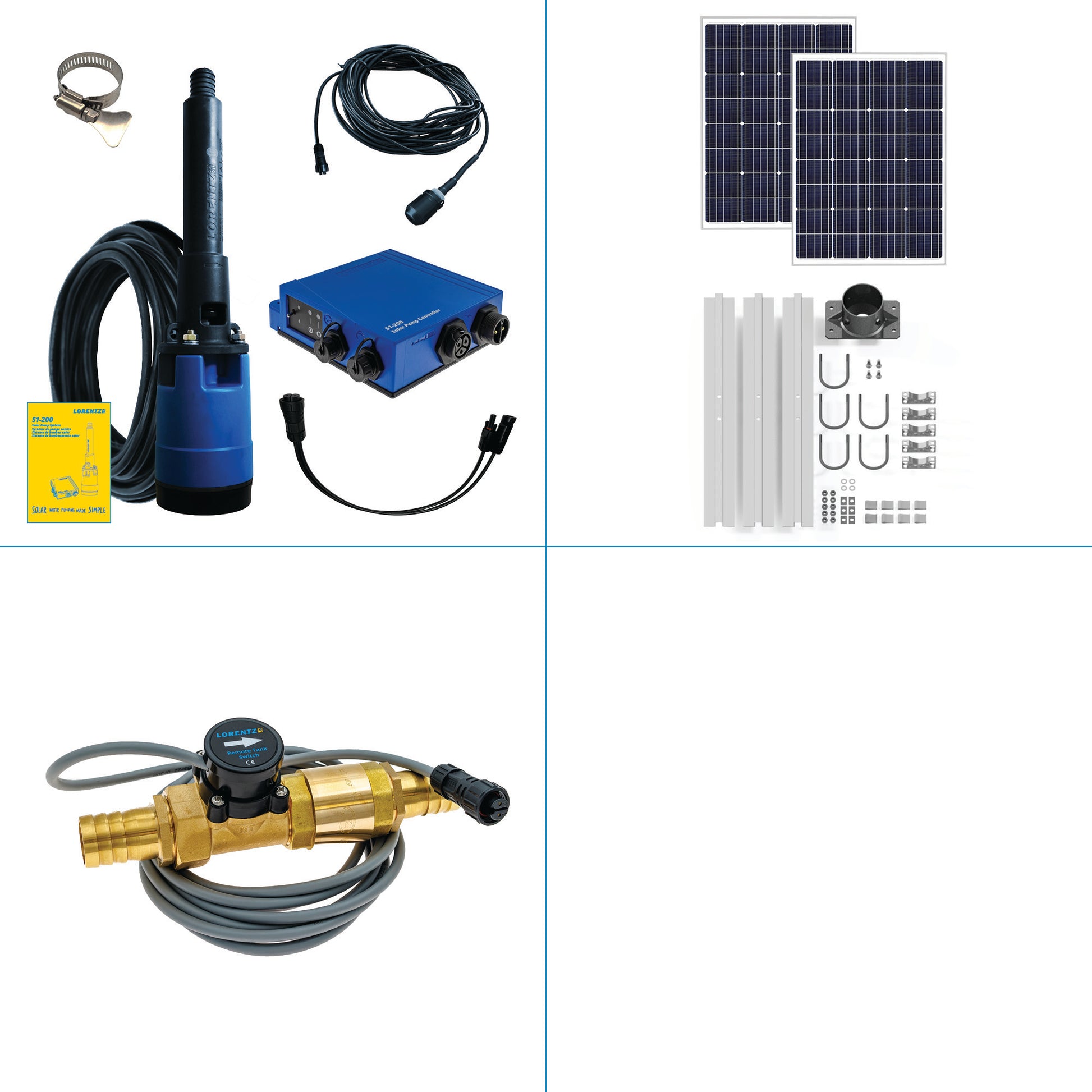

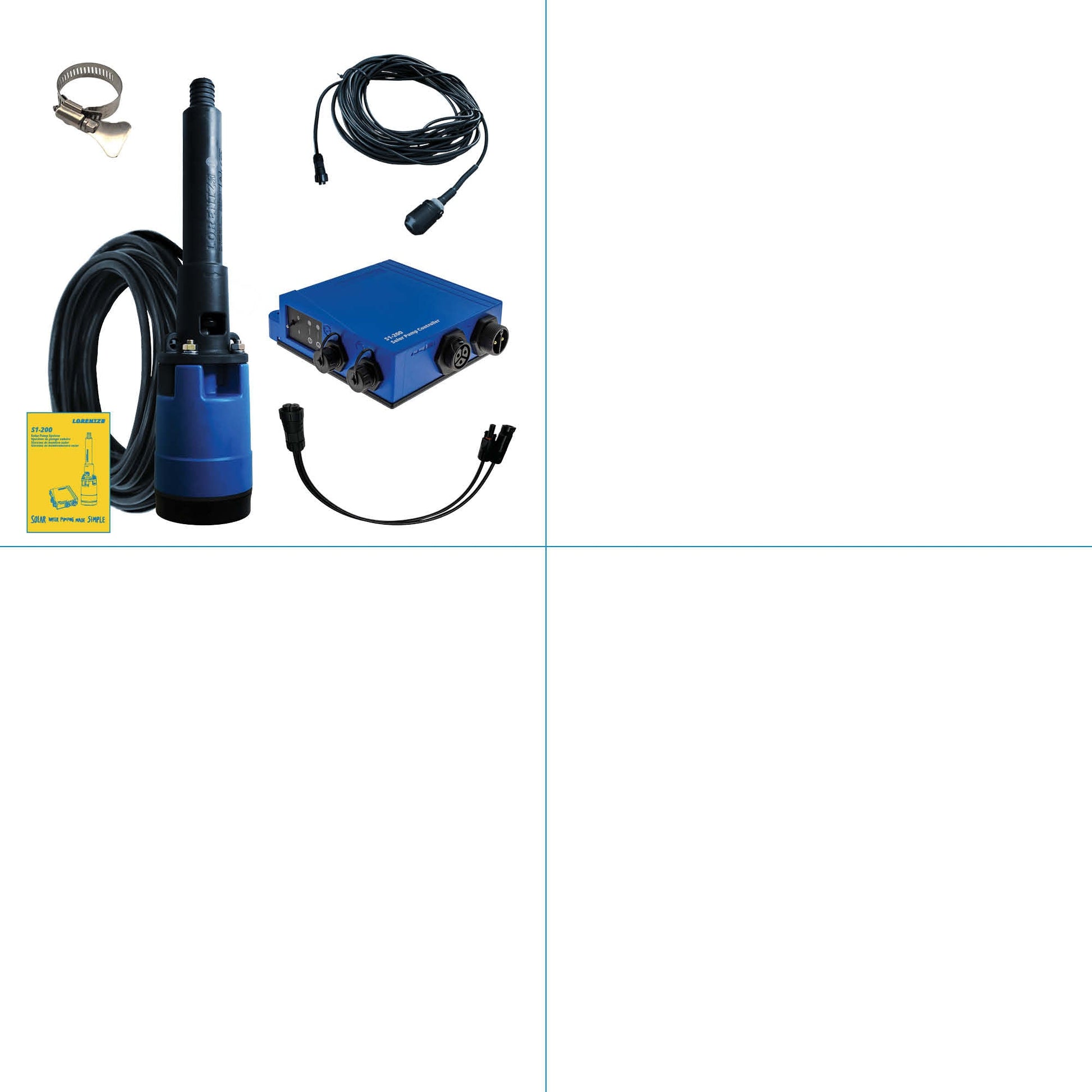

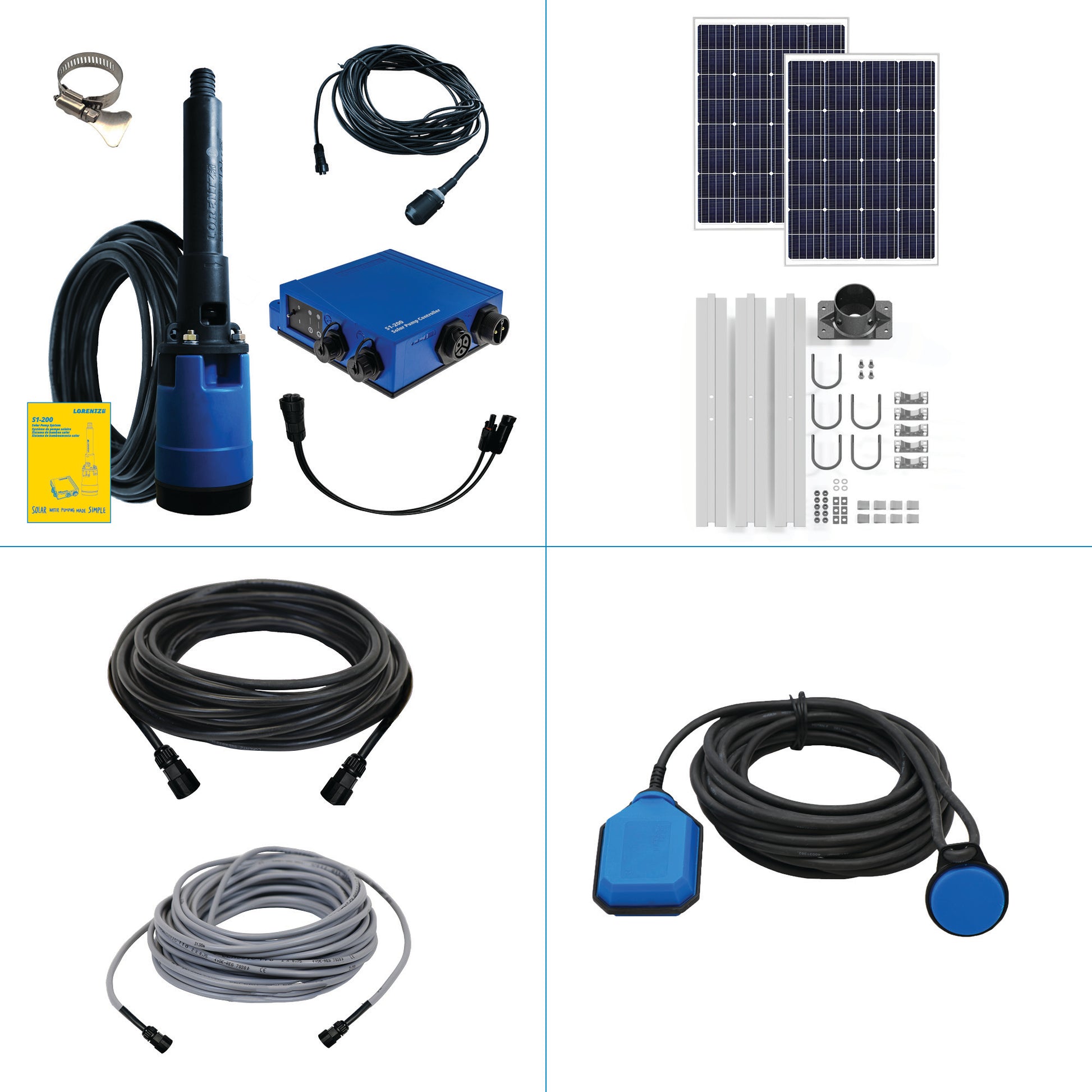

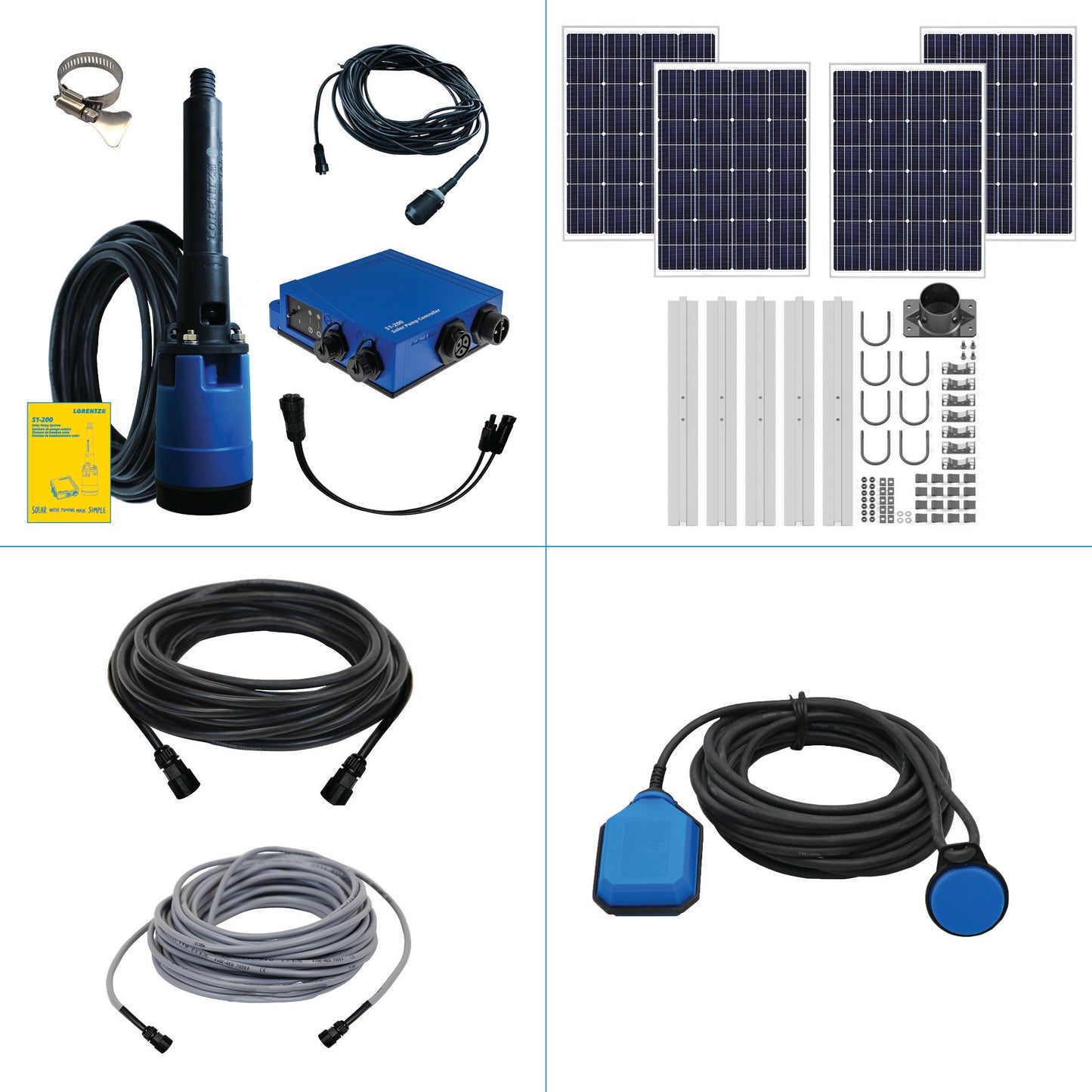

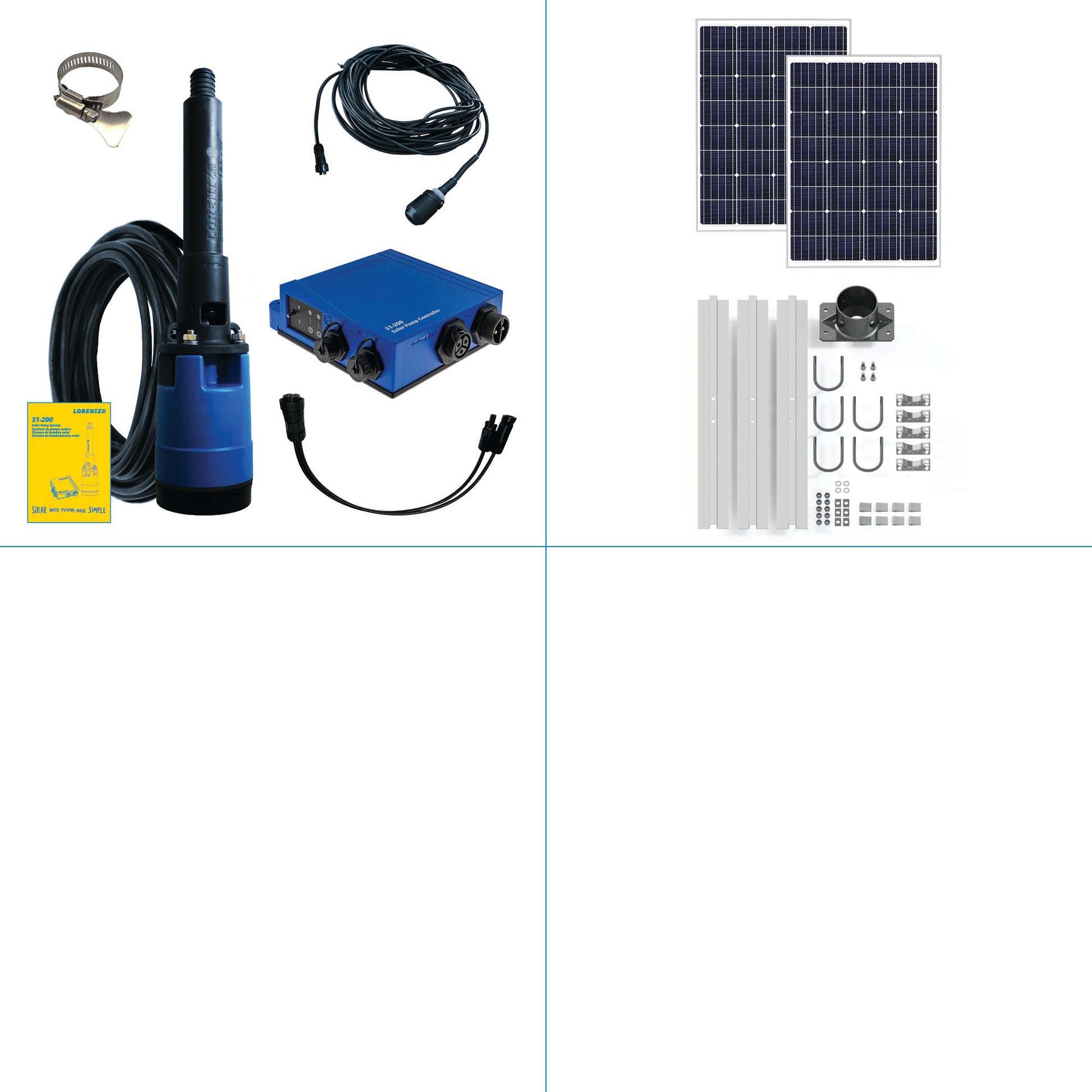

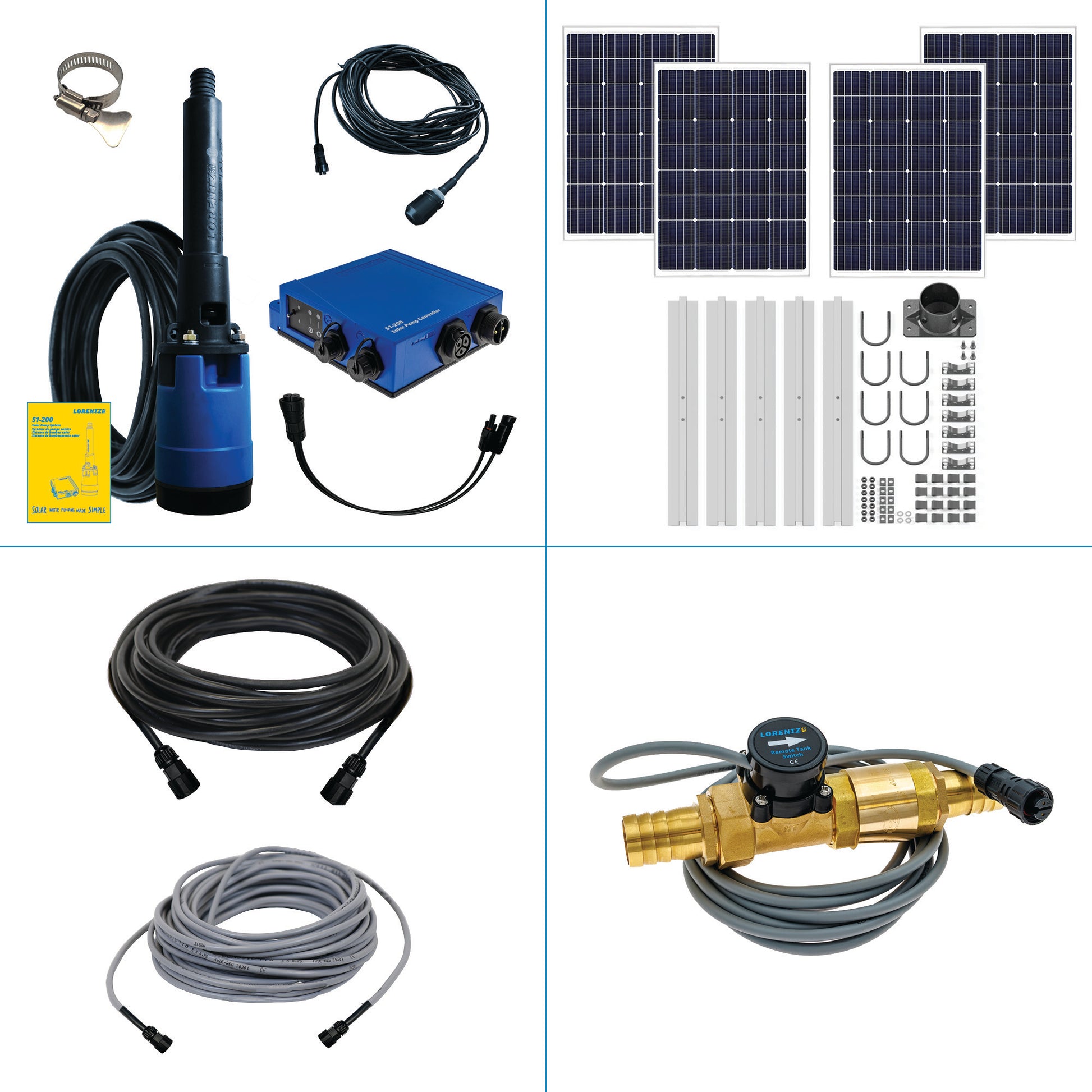

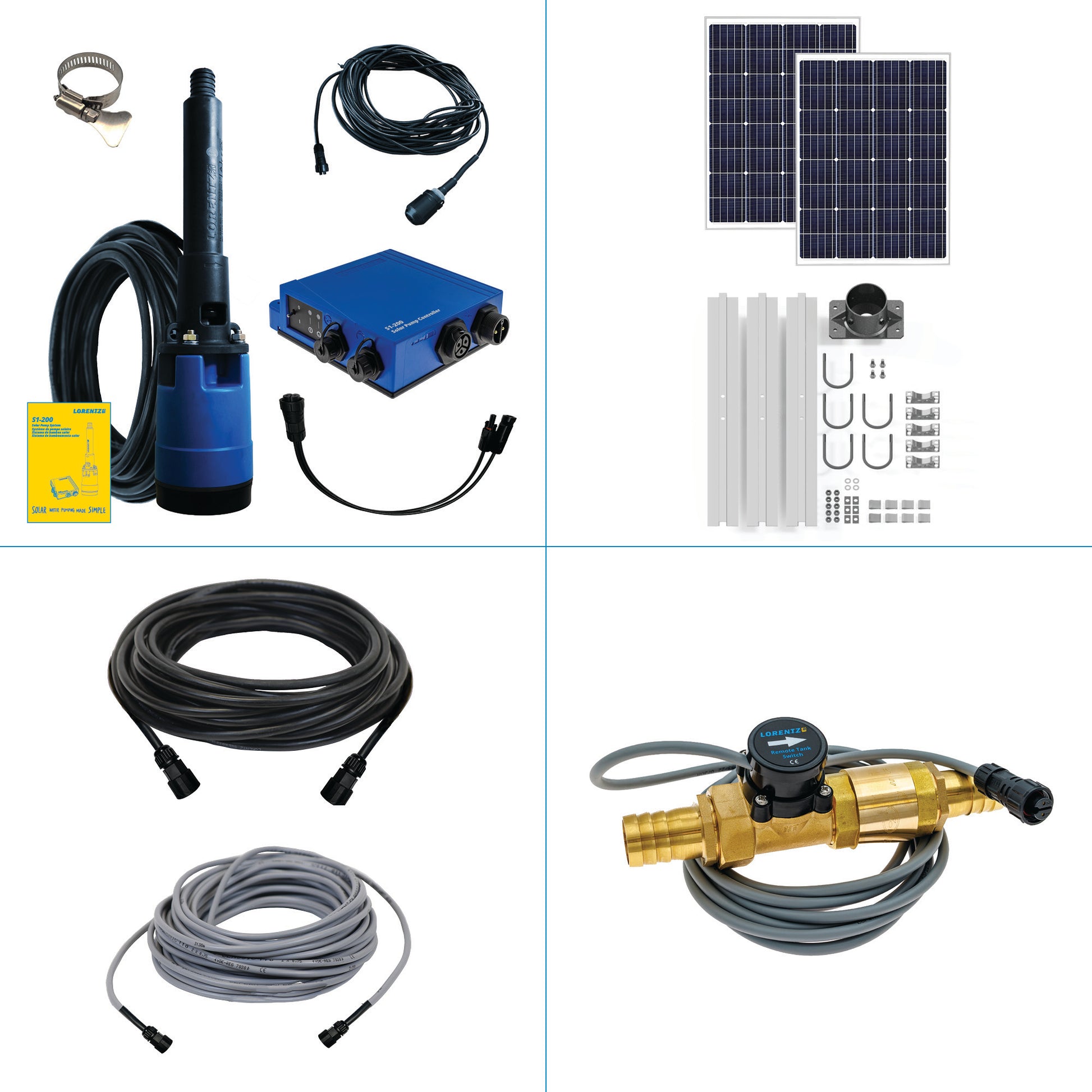

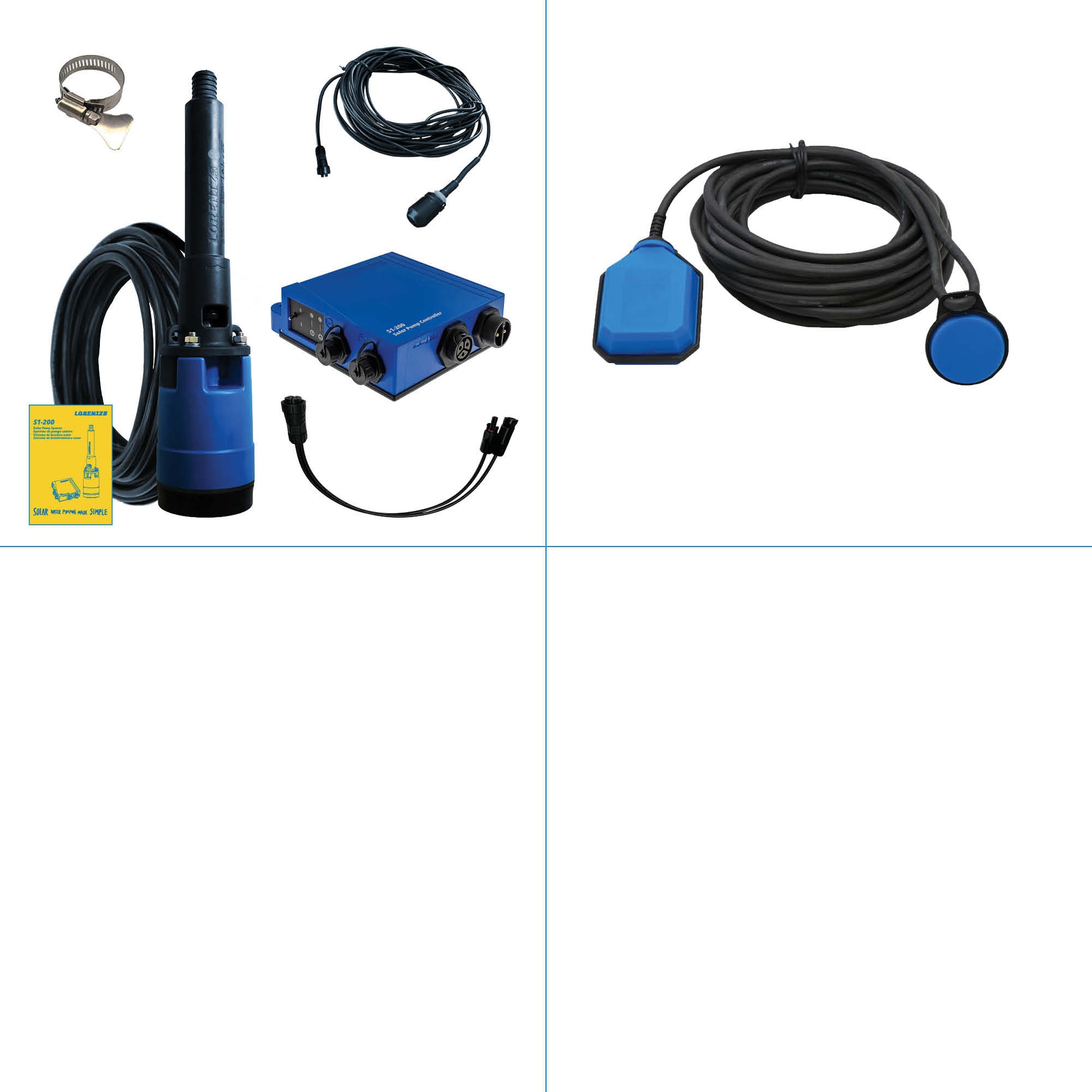

| No PV | 200 Wp with standard mounting rack | 200 Wp with heavy duty mounting rack | 400 Wp with standard mounting rack | 400 Wp with heavy duty mounting rack | |
| Pump with motor model S1-200 HR-14 with plug-in cable | 1 | 1 | 1 | 1 | 1 |
| S1-200 Controller | 1 | 1 | 1 | 1 | 1 |
| MC4 adapter cable (1.6 ft) for solar PV modules connection | 1 | 1 | 1 | 1 | 1 |
| 1" hose clamp | 1 | 1 | 1 | 1 | 1 |
| Screws (for mounting the controller behind the portable PV module) | 2 | 2 | 2 | 2 | 2 |
| Dry Run Protection accessory | 1 | 1 | 1 | 1 | 1 |

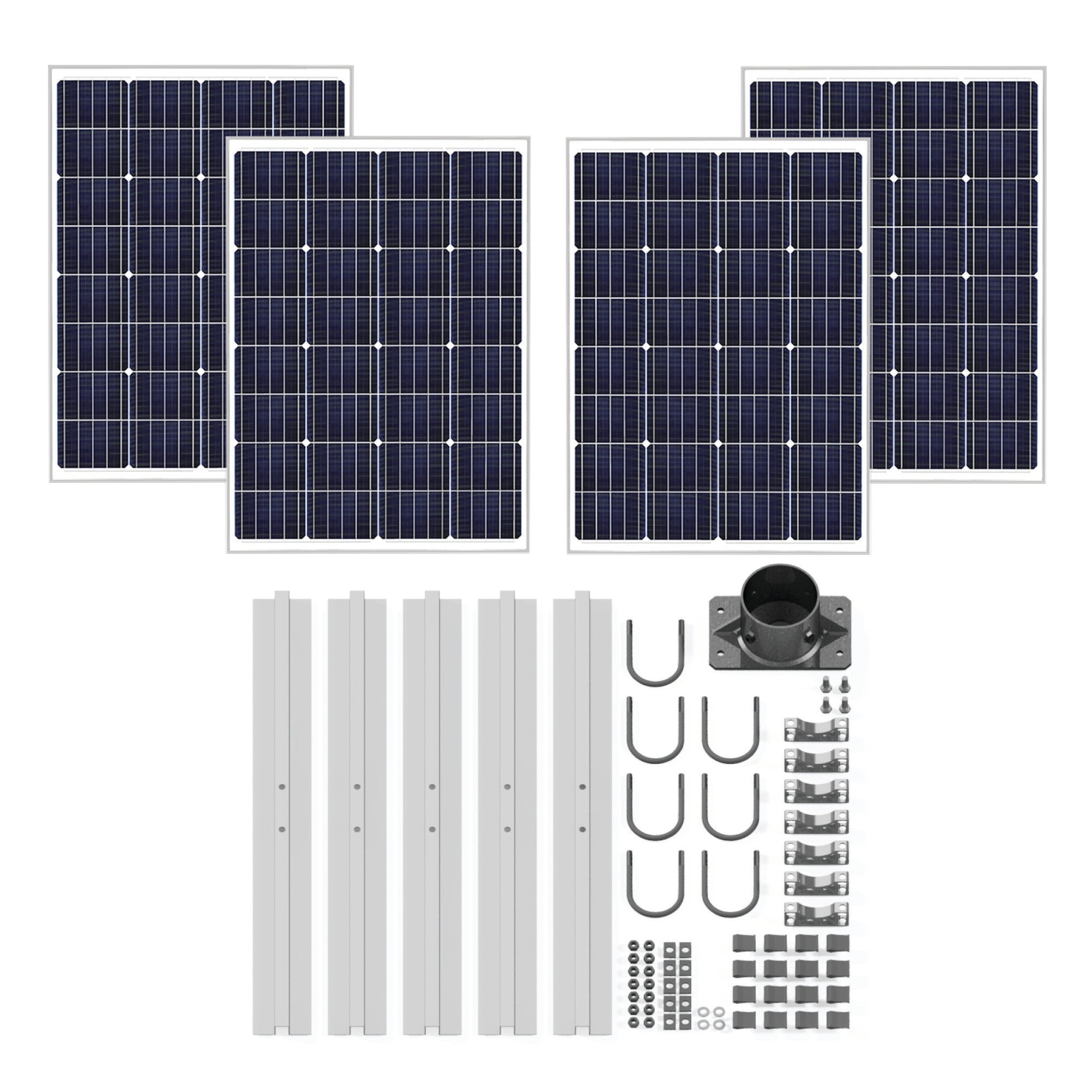

| 100Wp 36 Cell Mono PV Modules | - | 2 | 2 | 4 | 4 |

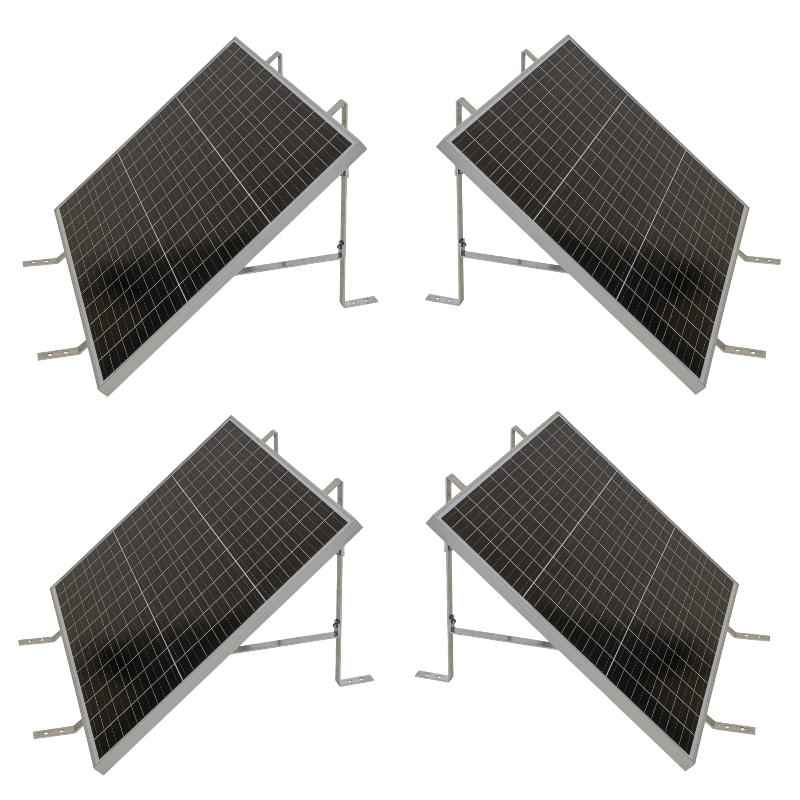

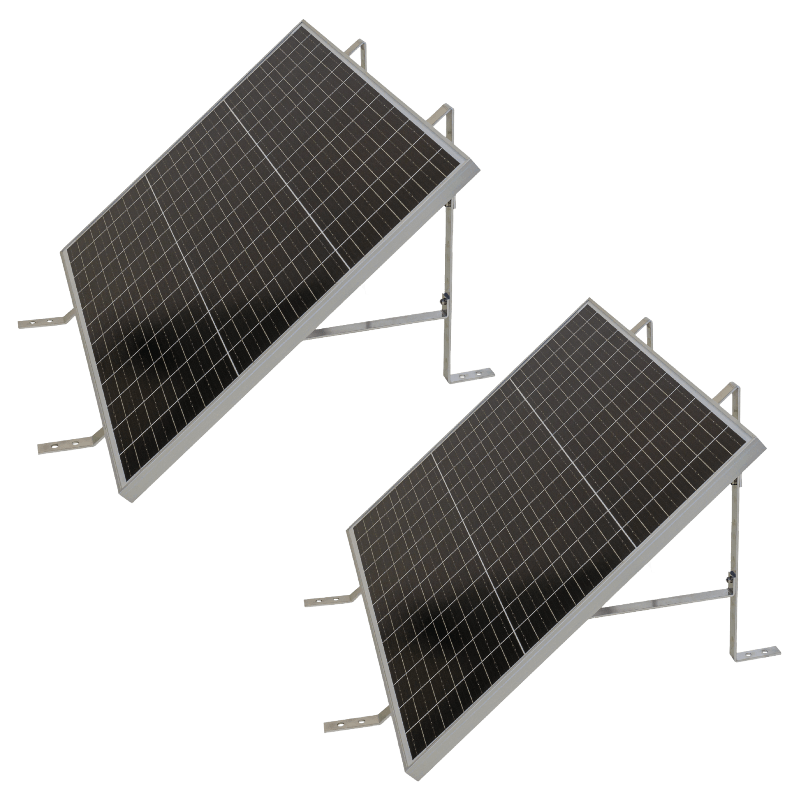

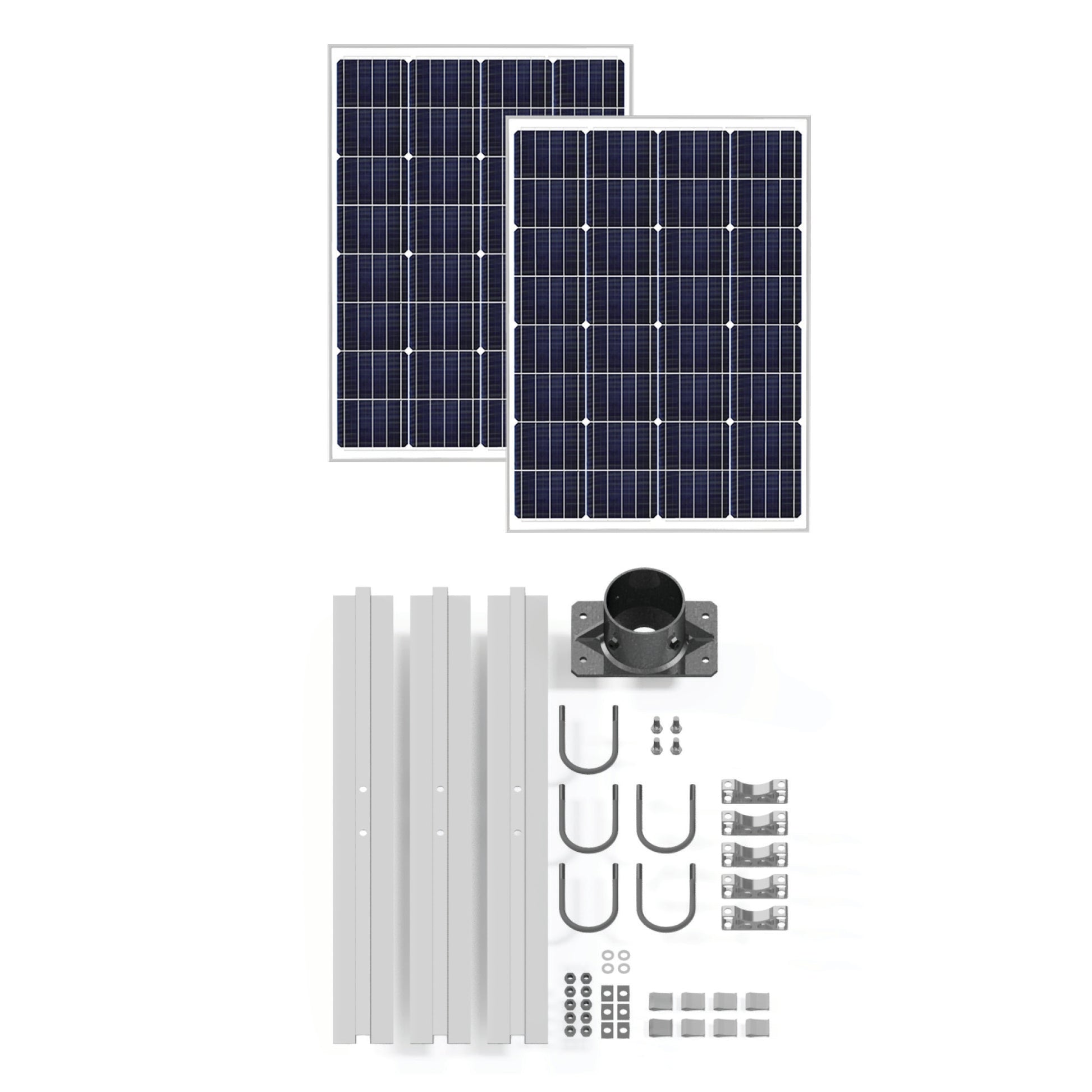

| Mounting Rack for 2 x 100Wp 36 Cell Mono PV Modules | - | 1 | - | 2 | - |
| Heavy duty mounting rack PM-1-2 *(see important mesage below) | - | - | 1 | - | - |
| Heavy duty mounting rack PM-1-4 *(see important mesage below) | - | - | - | - | 1 |

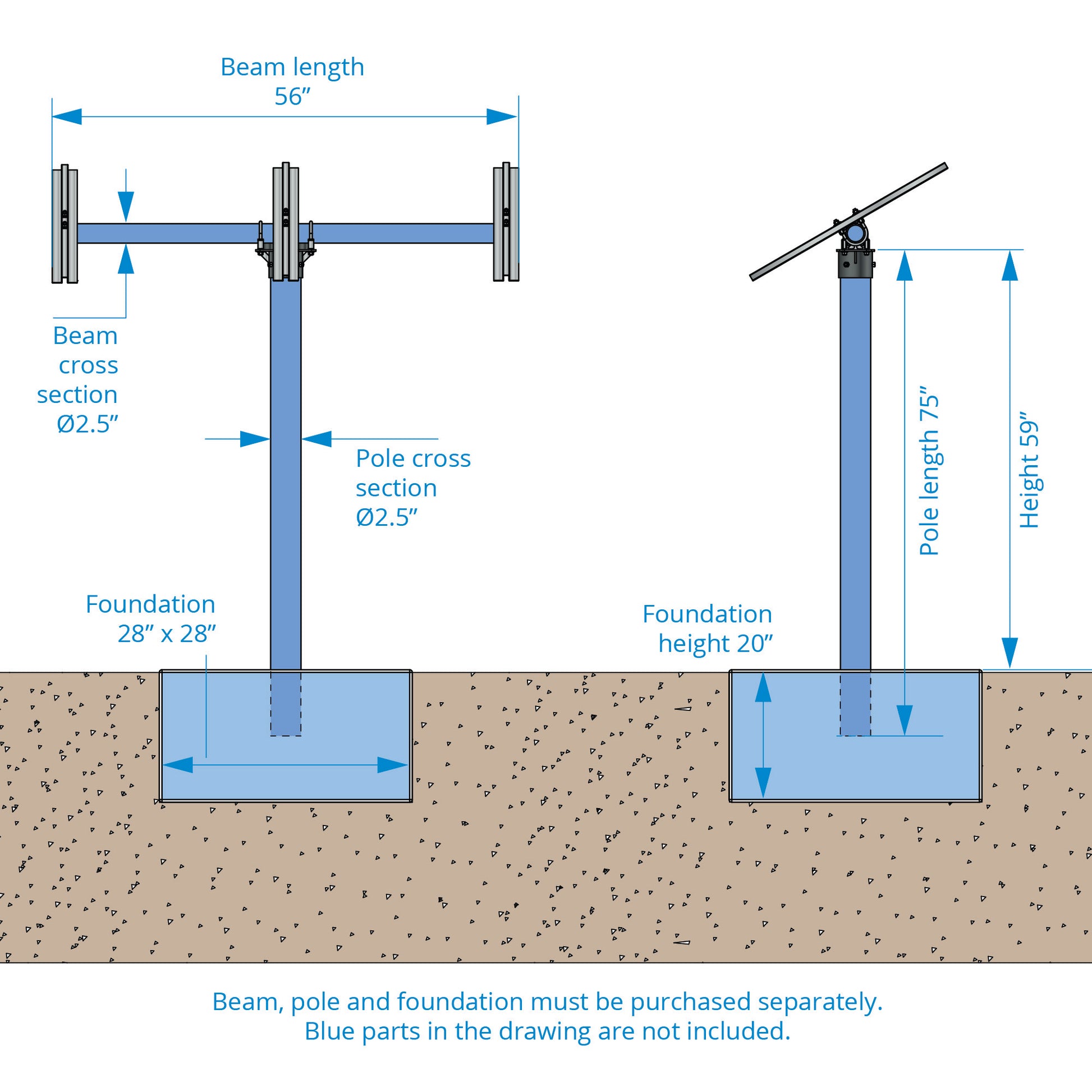

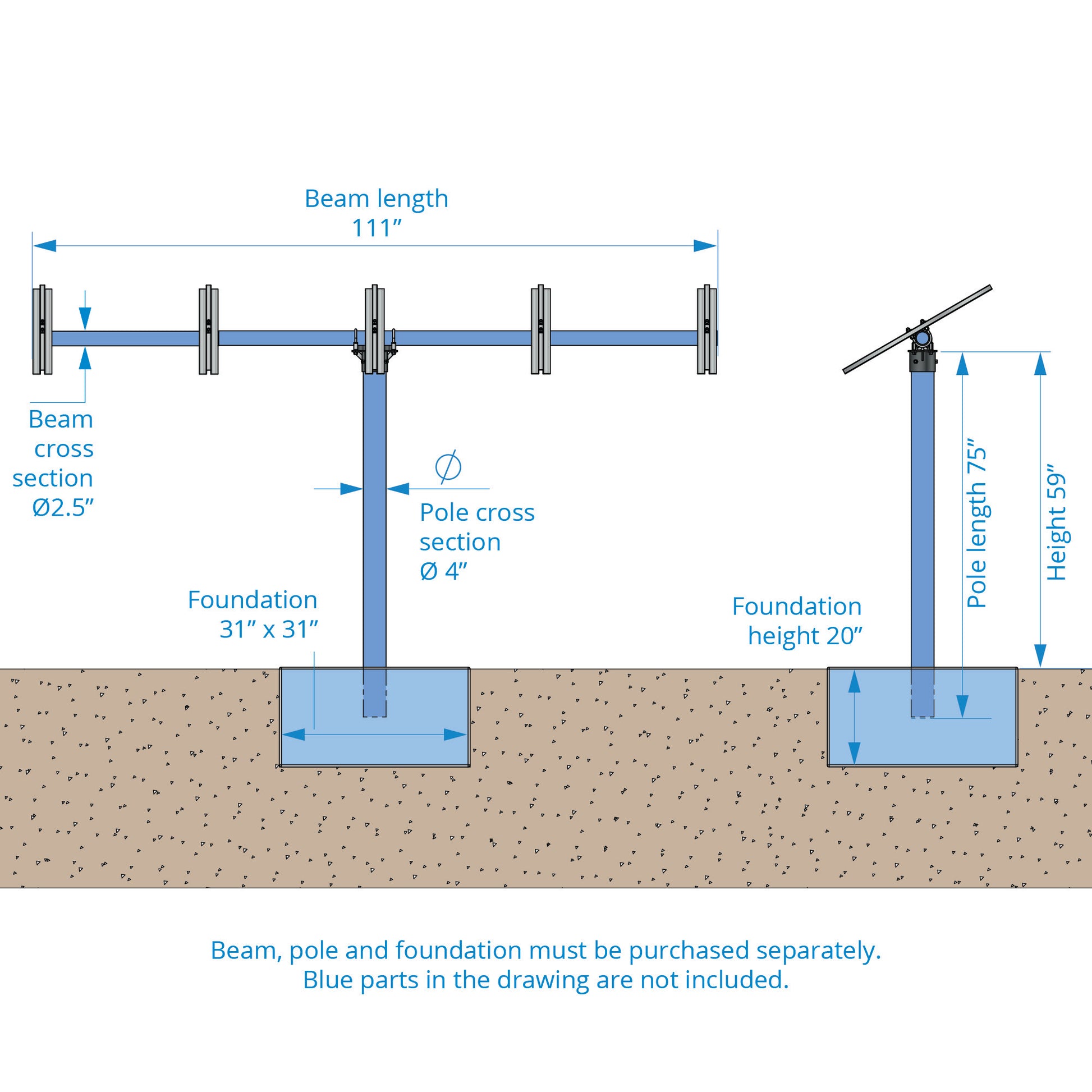

* Important: PM-1-2 and PM-1-4 heavy duty mounting racks do not include the beam, the pole and the foundation, these must be purchased separately. For more information on the components supplied and installation drawings, please refer to the links below correspondingly:
Heavy duty mounting rack PM-1-2
Heavy duty mounting rack PM-1-4
Data
Learn more about the technical information for the S1-200 HR-14 system:
Technical Data |
|
|
Max. flow |
8 US gpm [501 US gph] |
|
Max. head |
100 ft |
|
Water temperature range |
86 – 104 °F |
S1-200 Controller Data |
|
|
Max. continuous power |
0.3 hp |
|
Max. input voltage |
55 V DC |
|
Max. current (DC) |
6 A |
| Max. frequency | 170 Hz |
|
Ambient temperature |
-40 ... 122 °F |
|
Enclosure |
IP 68 |

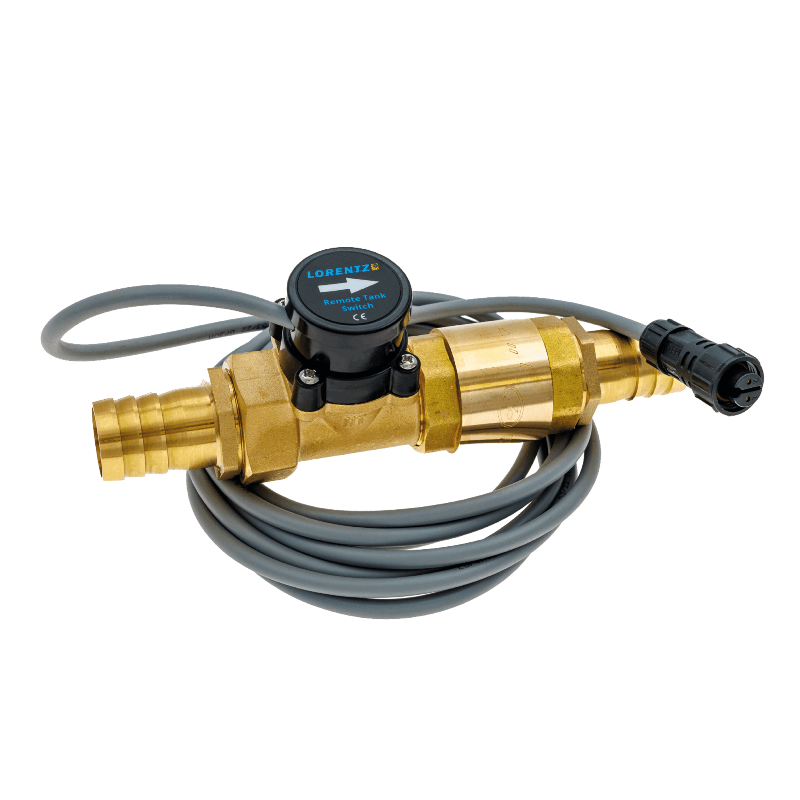

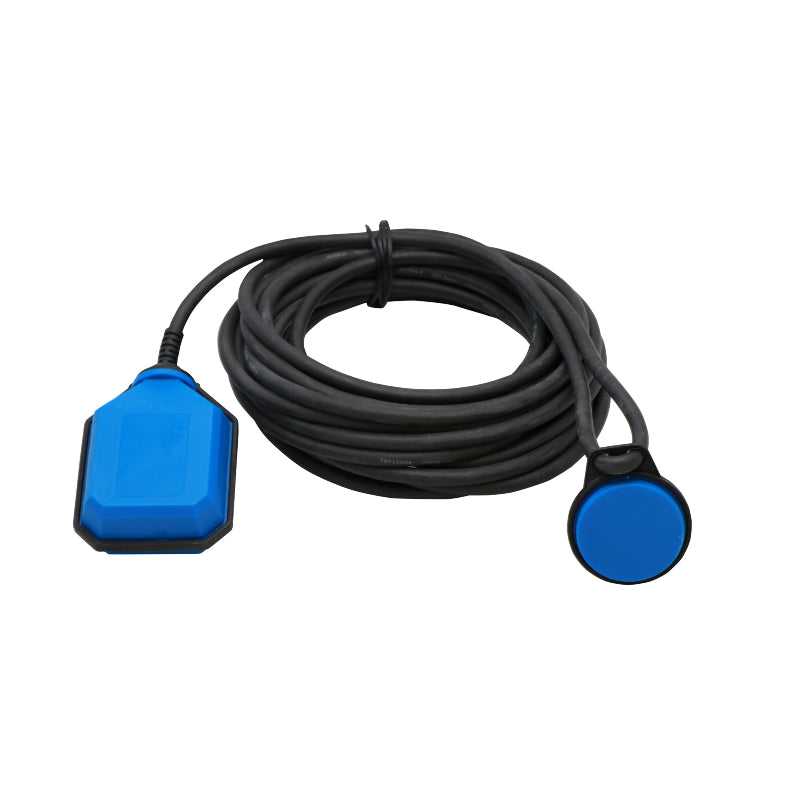

| Sensor inputs | Available for connecting Dry run protection - Tank full switch or Remote tank switch |
| Housing material | Polycarbonate |
| Bluetooth® connection | Yes |
| App | LORENTZ S-Connect |
Pump Data |
|
|
Pump type |
HR - Helical Rotor |
|
Pump discharge diameter |
1" for hose push connection |
| Min. borehole diameter | 4“ |
|
Rotor material |
Stainless Steel AISI 630 |
|
Stator material |
Polyphenylene sulfide |
ECDRIVE Motor Data |
|
|
Nominal power |
0.3 hp |
|
Max. motor efficiency |
86 % |
|
Motor speed |
700...2.500 rpm |
|
Insulation class |
F |
|
Enclosure class |
IP 68 |
|
Max. submersion |
164 ft |
| Cable length | 50 ft |
| Motor material | Polycarbonate |
