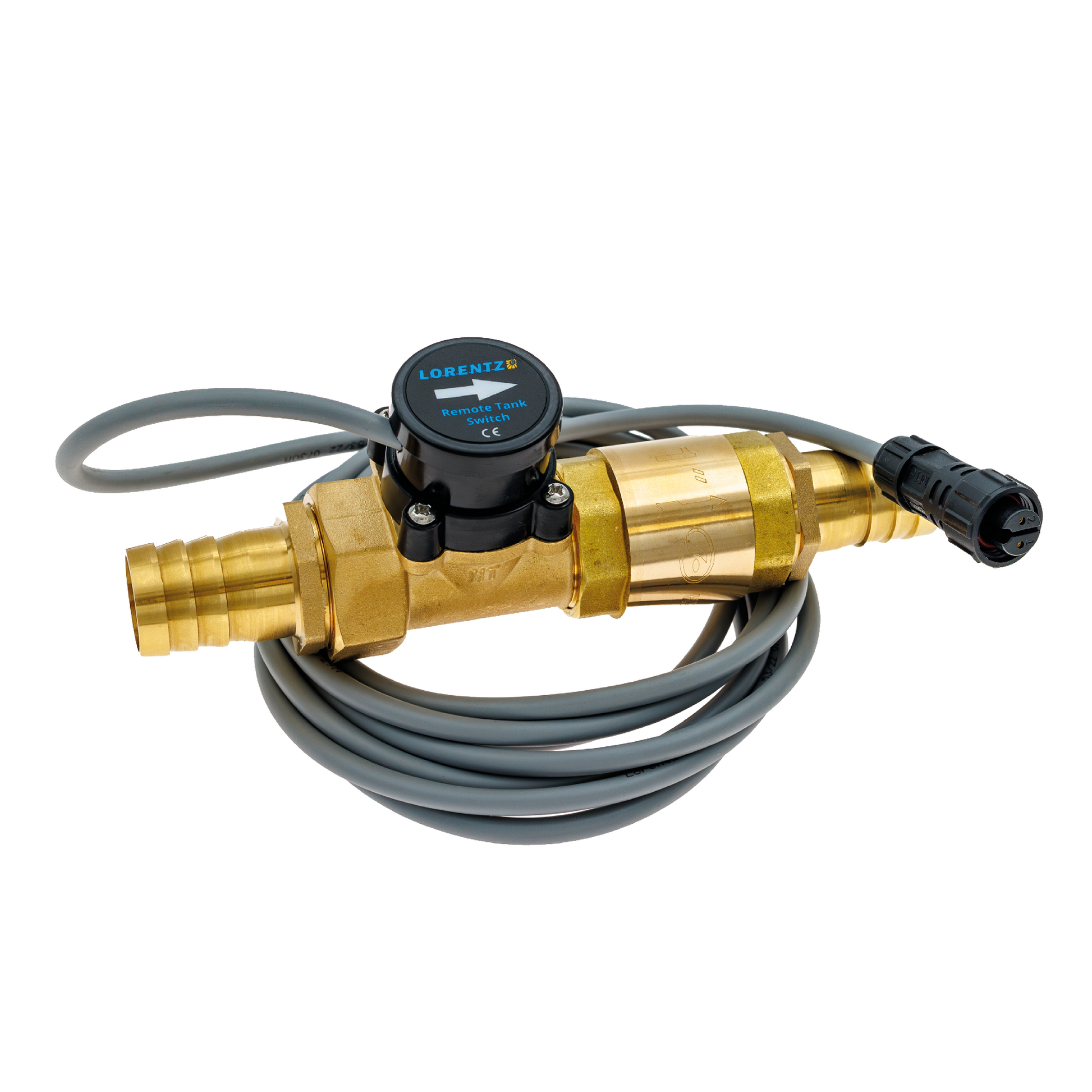

Remote Tank Switch

It is possible to automatically control the filling of remote tanks using the Remote Tank Switch accessory. This is used when the tank being filled is too far away to use a tank full switch accessory.

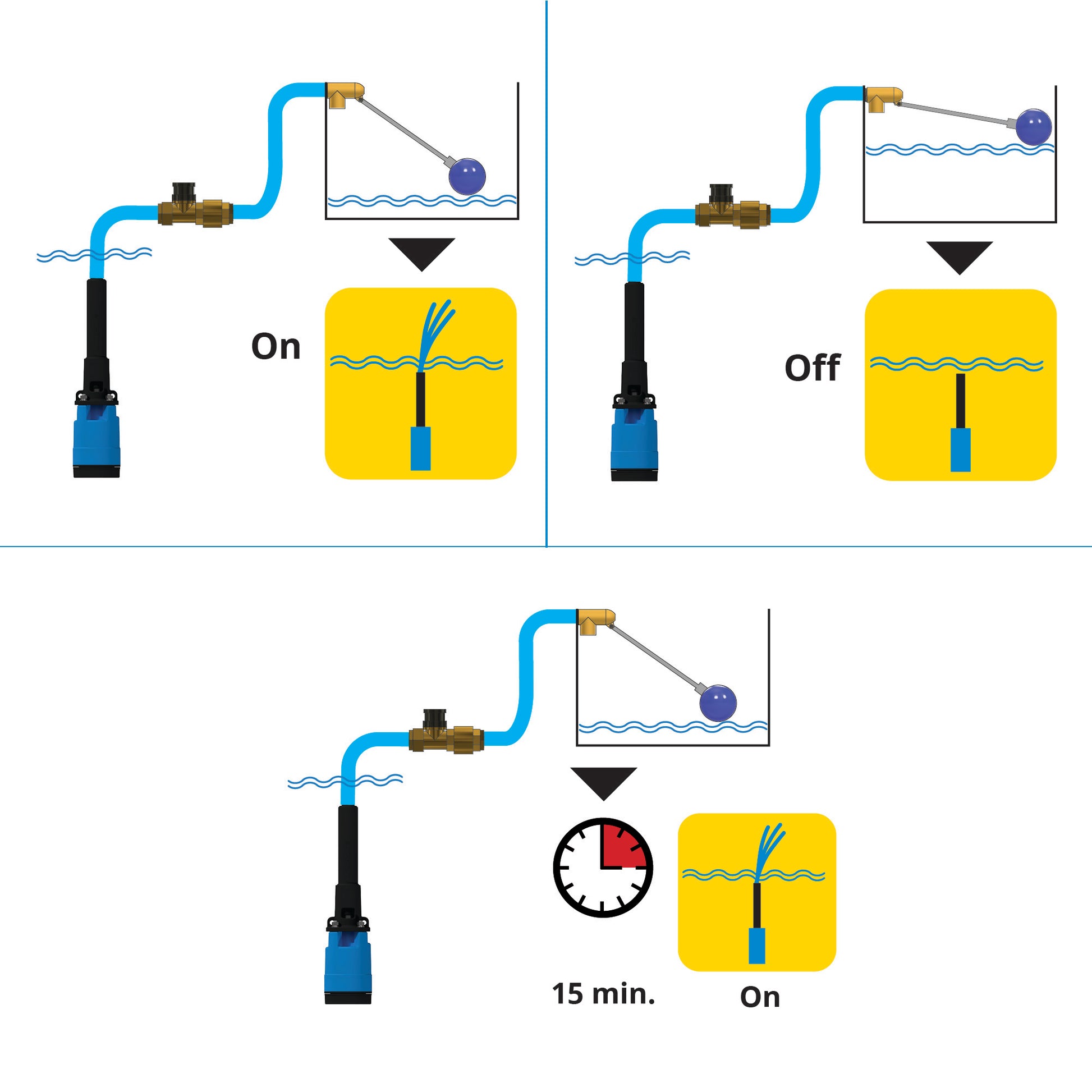

The Remote tank Switch is installed on the discharge pipe (or hose) close to the pump controller. A float valve (not included) is installed in the tank situated at the end of the discharge line. The RTS monitors water flow in the hose (or pipeline) and based on this, signals to the pump controller to run the pump or not. The pump controller performs periodic startups every 15 minutes* to monitor water flow.

Features

• Simple plug-in installation
• Automatic water flow sensor using a magnetic flow device
• Electronic components are sealed and not in contact with water
• Integrated non-return valve
• Flexible installation, includes adapters for 1“ hose, without adapters fits 1” tubing.
• Simple activation through the S-Connect App

You can download the brochure, user manual, technical data sheets for the pumping equipment and accessories at the following link:
S1-200 Pumping System Documentation
