Heavy Duty Mounting Rack Kit // for 2 x LORENTZ 100 Wp modules
Heavy Duty Mounting Rack Kit // for 2 x LORENTZ 100 Wp modules
Couldn't load pickup availability
The "Heavy duty mounting rack kit for 2 x LORENTZ 100 Wp modules" (PM-1-2) is a robust, high-quality mounting system designed to securely hold two (2) LORENTZ 100 Wp PV modules on a single pole. Engineered to withstand tough environmental conditions, it ensures maximum solar exposure with its adjustable tilt and corrosion-resistant construction. The PM-1-2 is a reliable, easy-to-install solution for solar installations, it also easily adapts to different frame thicknesses and sizes for other modules. The system also uses a fast and easy hammer spring clip which speeds up the install.
Main Features:
- Mainly compatible with 2 x LORENTZ 100 Wp modules
(PV modules are not included in the price) - Compatible also with PV module sizes: up to 63" × 32" or up to 76" × 40".
- Tilt angle adjustable from 0° to 55°
- Robust construction: stainless steel, aluminum, steel
- Engineered for high wind speeds: up to 81 mph, compliant with American standards
- Quick and simple installation by one person
- Corrosion-resistant materials for long lifespan
Scope of delivery:
Important: Beam, pole and foundation must be purchased separately.

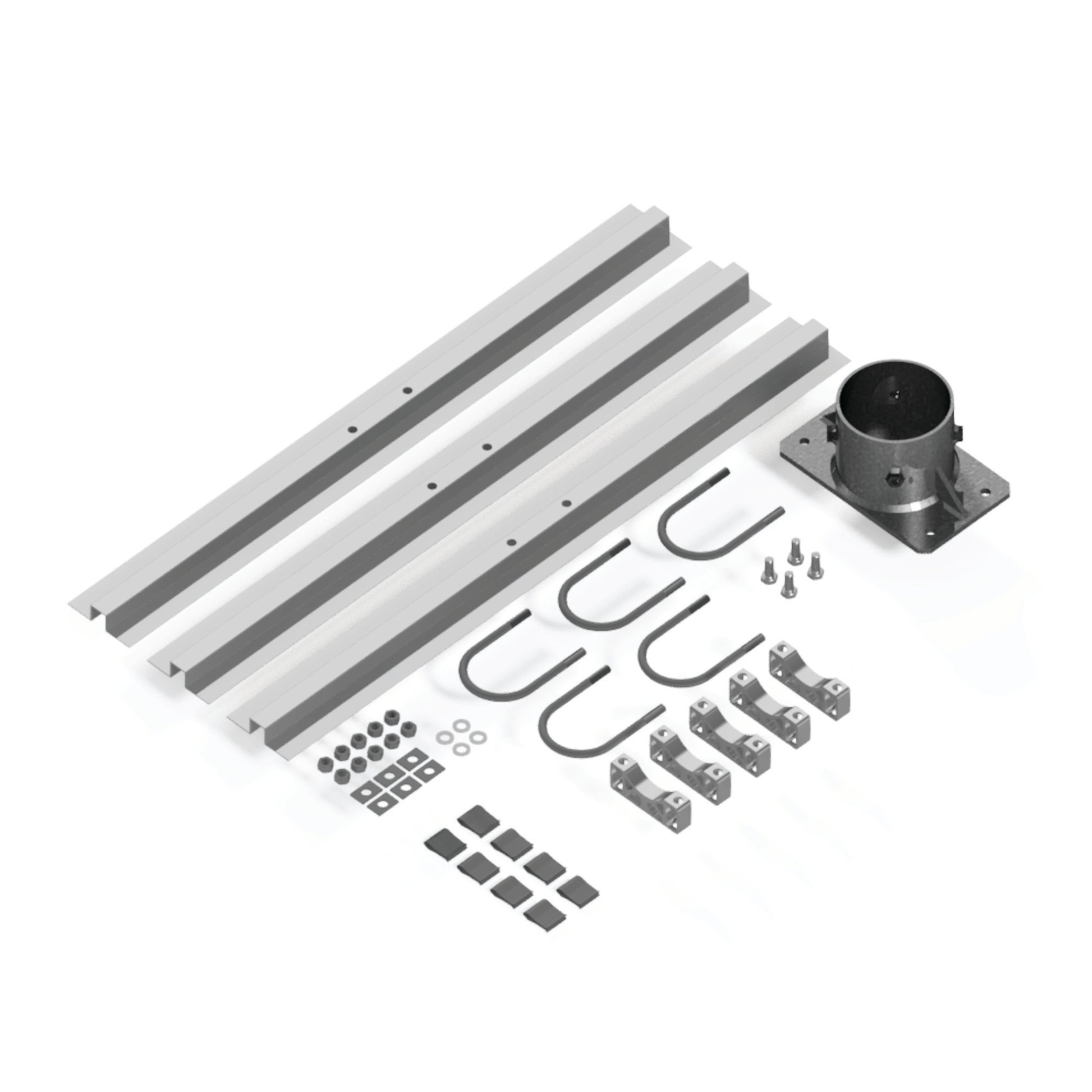

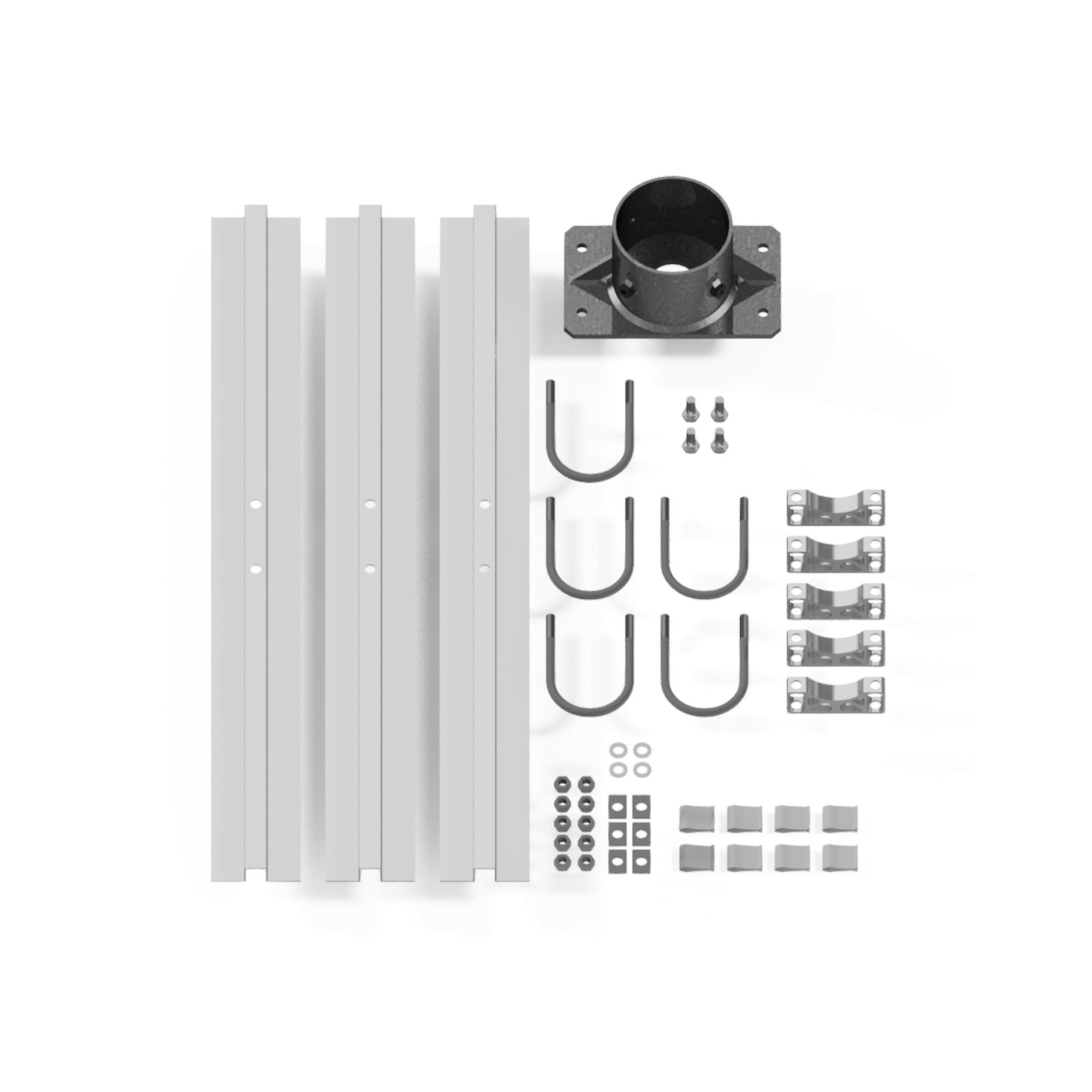

| Description | Material | Qty. |
| Rail for PV module fixing | Aluminium | 3 |
| U-Bolt for 2.5" beam | Stainless steel | 5 |
| Support for 2,5" pole | Steel, ZN coated | 1 |
| Support for 2,5" beam | Aluminium | 5 |
| Fixing clip for PV module | Stainless steel | 8 |
| Nut M10-A2-70 | Stainless steel | 10 |
| Washer for U-Bolts | Stainless steel | 6 |
| Screw M10x25 | Stainless steel | 4 |
| Washer 10,5 x 20 x 2 | Stainless steel | 4 |
Additional parts required (blue parts in the following drawing are not included):
- Beam specifications:
| Description | Cross section | Length |
| Beam - US Standard pipe schedule 40 | 2.5" | 56" |
- Pole specifications:
| Description | Cross section | Length |
| Pole - US Standard pipe schedule 40 | 2.5" | 75" |
- Foundation specifications:
| Description | Height | Dimensions |
| Concrete foundation with steel reinforcement for PV module sizes: up to 63" × 32" or up to 76" × 40" |
20" | 28" x 28" |

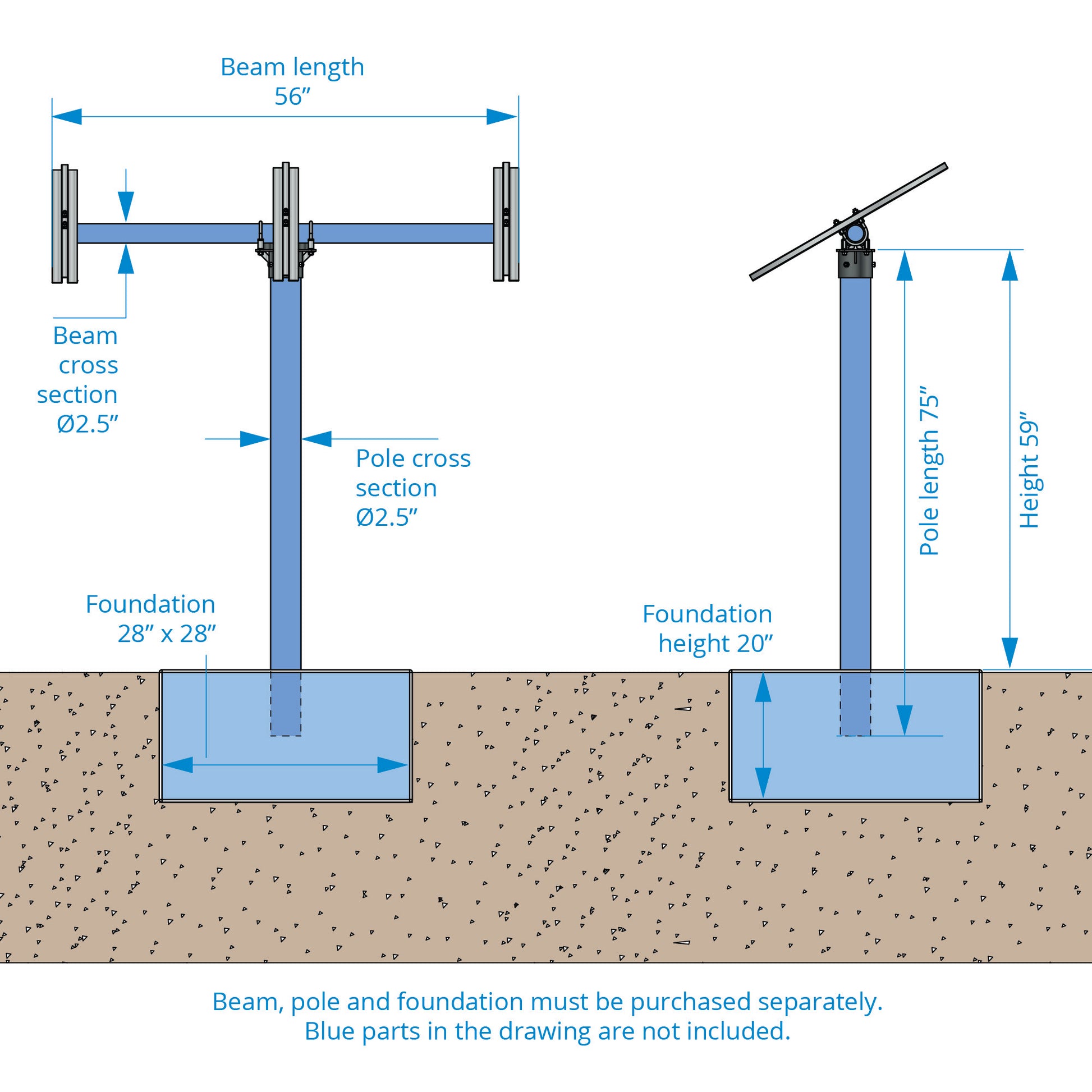

See also the following dimensional drawing for more information:
